Notion Database

Query a public Notion database, supporting both basic information and SQL query.

This widget supports multiple actions. For a more comprehensive understanding of its functionality, we recommend reviewing the following documentation carefully.

You need to pass both the action and other input parameters of the chosen action to your module_config

Try it in the Widget Center

Click this url to try this widget and copy the Pro Config template.

Usage

Query the Whole Database

action query_all

Input Parameters

Name	Type	Description	Default	Required
url	string	URL of the public database	default_url
action	string	The action you want to perform	query_all

Output Parameters

Name	Type	Description	File Type
data	array	The returned database in list

Output Example

success

{
  "data": [
    {
      "Age": "15",
      "Name": "Jack",
      "Password": "password1",
      "Phone Number": "13033331111"
    },
    {
      "Age": "34",
      "Name": "Taylor",
      "Password": "password2",
      "Phone Number": "13100001111"
    },
    {
      "Age": "17",
      "Name": "Harry",
      "Password": "password3",
      "Phone Number": "13888883333"
    },
    {
      "Age": "43",
      "Name": "Sherlock",
      "Password": "password4",
      "Phone Number": "15909098787"
    }
  ]
}

Obtain the Column Names

action query_schema

Input Parameters

Name	Type	Description	Default	Required
url	string	URL of the public database	default_url
action	string	The action you want to perform	query_schema

Output Parameters

Name	Type	Description	File Type
data	array	The column names of the database

Output Example

success

{
  "data": [
    "Phone Number",
    "Age",
    "Password",
    "Name"
  ]
}

Query All Values of a Specific Column

action query_column

Input Parameters

Name	Type	Description	Default	Required
url	string	URL of the public database	default_url
action	string	The action you want to perform	query_column
column_name	string	Colume name to query

Output Parameters

Name	Type	Description	File Type
data	array	The values under a specific column

Output Example

success

{
  "data": [
    "Jack",
    "Taylor",
    "Harry",
    "Sherlock"
  ]
}

Query The Database with SQL

action query_sql

This action provides an advanced query with SQL. The table name is defined as DATA

Input Parameters

Name	Type	Description	Default	Required
url	string	URL of the public database	default_url
action	string	The action you want to perform	query_sql
sql_str	string	SQL string to query, please use it like 'SELECT * FROM database'	SELECT * FROM DATA WHERE Age < 18

Output Parameters

Name	Type	Description	File Type
data	array	The query results of the public Notion database

Output Example

success

{
  "data": [
    {
      "Age": "15",
      "Name": "Jack",
      "Password": "password1",
      "Phone Number": "13033331111"
    },
    {
      "Age": "17",
      "Name": "Harry",
      "Password": "password3",
      "Phone Number": "13888883333"
    }
  ]
}

Add Rows

action add_rows

This action provides a interface to add rows to a public notion database

Input Parameters

Name	Type	Description	Default	Required
url	string	URL of the public database	default_url
action	string	The action you want to perform	add_rows
rows_info	string	Rows information to add	[{}]

Output Parameters

Name	Type	Description	File Type
data	array	The query results of the public Notion database

Output Example

success

{
  "data": [
    {
      "result": "success"
    }
  ]
}

Detailed Guidelines

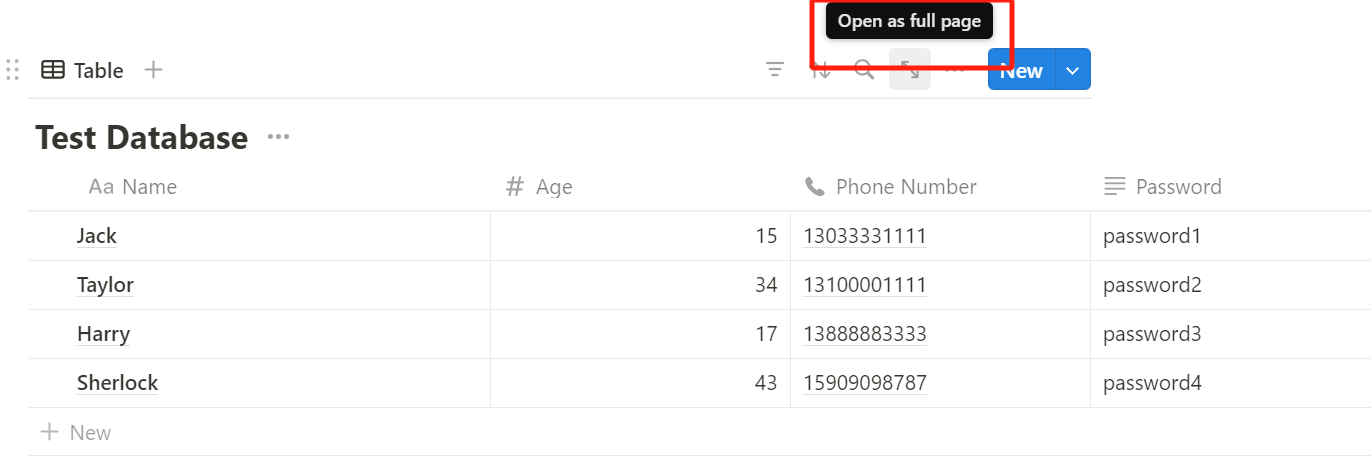

In notion, we can type /database to create a database. Then click the open as full page as below:

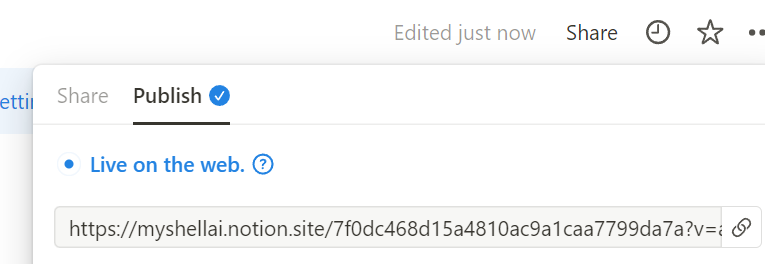

click the share button and copy the url to feed into your Notion Database widget:

If you want to add information to the notion, you can use theadd_rowsaction. The json format should follow the format like

[{"Name": "Jack", "Phone Number": "13033331111", "Password": "password1"}]

However, f you want to use it in pro config use values of variables, please note that the"symbols should be escaped like

[{\"Name\": \"{{name}}\", \"Phone Number\": \"{{phone_number}}\", \"Password\": \"{{password}}\"}]

The sturcture of proconfig may looks like

{
  "id": "notion_add_rows_template",
  "initial": "home_state",
  "states": {
    "home_state": {
      "inputs": {
        "url": {
          "type": "text",
          "description":"URL of the public database",
          "user_input": true
        },
        "name": {
          "type": "text",
          "user_input": true
        },
        "phone_number": {
          "type": "text",
          "user_input": true
        },
        "password": {
          "type": "text",
          "user_input": true
        }
      },
      "tasks": [
        {
          "name": "any_module_example_task",
          "module_type": "AnyWidgetModule",
          "module_config": {
            "widget_id": "1782389035948912640",
            "url":"{{url}}", // this field will received value from user input
            "action":"add_rows", // The action you want to perform
            "rows_info":"[{\"Name\": \"{{name}}\", \"Phone Number\": \"{{phone_number}}\", \"Password\": \"{{password}}\"}]", // Rows information to add
            "output_name": "result"
          }
        }
      ],
      "render": {
        "text": "{{JSON.stringify(result)}}", // this widget will output a map, you can first run it and know what its type is.
        "buttons": [
          {
            "content":"Try Again",
            "description":"",
            "on_click":"try_again"
          }
        ]
      },
      "transitions": {
        "try_again": "home_state"
      }
    }
  }
}
